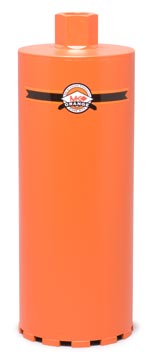

MK-Orange Segmented Core Bits - For Concrete & Asphalt

MK-Orange Segmented Core Bits - For Concrete & Asphalt

$70.00 USD
$70.00 USD
Sale Sold out
Taxes included.
Laser Welded Icon

MK Orange is a premium grade bit designed for wet drilling applications that include light to moderate steel reinforcement. The high diamond concentration ensures excellent footage and cutting speed. Additional diameters and lengths available on request.

Diameter Nut MK Orange
1" (25mm) 5/8"-11 156348
1-1/8" (29mm) 5/8"-11 204011
1-1/4" (32mm) 5/8"-11 156349
1-3/8" (35mm) 5/8"-11 171317
1-1/2" (38mm) 5/8"-11 156350
1-5/8" (39mm) 1-1/4"-7 171318
1-3/4" (44mm) 1-1/4"-7 156351
2" (51mm) 1-1/4"-7 156352
2-1/4" (57mm) 1-1/4"-7 156353
2-1/2" (64mm) 1-1/4"-7 156354
2-3/4" (70mm) 1-1/4"-7 156355
3" (76mm) 1-1/4"-7 156356
3-1/4" (83mm) 1-1/4"-7 156357
3-1/2" (89mm) 1-1/4"-7 156358
4" (102mm) 1-1/4"-7 156359
4-1/4" (108mm) 1-1/4"-7 156360
4-1/2" (114mm) 1-1/4"-7 156361
5" (127mm) 1-1/4"-7 156362
5-1/2" (140mm) 1-1/4"-7 157627
6" (152mm) 1-1/4"-7 156363
6-1/4" (159mm) 1-1/4"-7 156364
6-1/2" (165mm) 1-1/4"-7 156365
7" (178mm) 1-1/4"-7 156366
8" (203mm) 1-1/4"-7 156368
9" (229mm) 1-1/4"-7 156369
10" (254mm) 1-1/4"-7 156370
12" (305mm) 1-1/4"-7 156371
14" (356mm) 1-1/4"-7 156372
16" (406mm) 1-1/4"-7 170052
Segment Height 7.5 mm
Drilling Depth 14"

Wet core bit drawing (PDF format)
