$70.00
 |

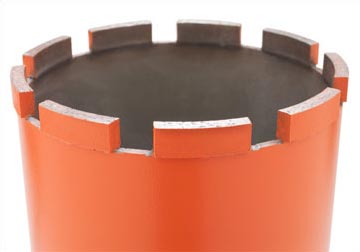

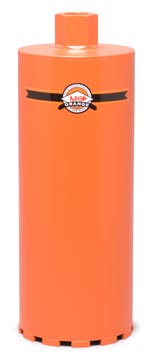

MK Orange is a premium grade bit designed for wet drilling applications that include light to moderate steel reinforcement. The high diamond concentration ensures excellent footage and cutting speed. Additional diameters and lengths available on request.
| Diameter | Nut | MK Orange | |
| 1" | (25mm) | 5/8"-11 | 156348 |
| 1-1/8" | (29mm) | 5/8"-11 | 204011 |
| 1-1/4" | (32mm) | 5/8"-11 | 156349 |
| 1-3/8" | (35mm) | 5/8"-11 | 171317 |
| 1-1/2" | (38mm) | 5/8"-11 | 156350 |
| 1-5/8" | (39mm) | 1-1/4"-7 | 171318 |
| 1-3/4" | (44mm) | 1-1/4"-7 | 156351 |
| 2" | (51mm) | 1-1/4"-7 | 156352 |
| 2-1/4" | (57mm) | 1-1/4"-7 | 156353 |
| 2-1/2" | (64mm) | 1-1/4"-7 | 156354 |
| 2-3/4" | (70mm) | 1-1/4"-7 | 156355 |
| 3" | (76mm) | 1-1/4"-7 | 156356 |
| 3-1/4" | (83mm) | 1-1/4"-7 | 156357 |
| 3-1/2" | (89mm) | 1-1/4"-7 | 156358 |
| 4" | (102mm) | 1-1/4"-7 | 156359 |
| 4-1/4" | (108mm) | 1-1/4"-7 | 156360 |
| 4-1/2" | (114mm) | 1-1/4"-7 | 156361 |
| 5" | (127mm) | 1-1/4"-7 | 156362 |
| 5-1/2" | (140mm) | 1-1/4"-7 | 157627 |
| 6" | (152mm) | 1-1/4"-7 | 156363 |
| 6-1/4" | (159mm) | 1-1/4"-7 | 156364 |
| 6-1/2" | (165mm) | 1-1/4"-7 | 156365 |
| 7" | (178mm) | 1-1/4"-7 | 156366 |
| 8" | (203mm) | 1-1/4"-7 | 156368 |
| 9" | (229mm) | 1-1/4"-7 | 156369 |
| 10" | (254mm) | 1-1/4"-7 | 156370 |
| 12" | (305mm) | 1-1/4"-7 | 156371 |
| 14" | (356mm) | 1-1/4"-7 | 156372 |
| 16" | (406mm) | 1-1/4"-7 | 170052 |
| Segment Height | 7.5 mm | ||
| Drilling Depth | 14" | ||
